#1: TSW212

MANAGED NETWORK SWITCH

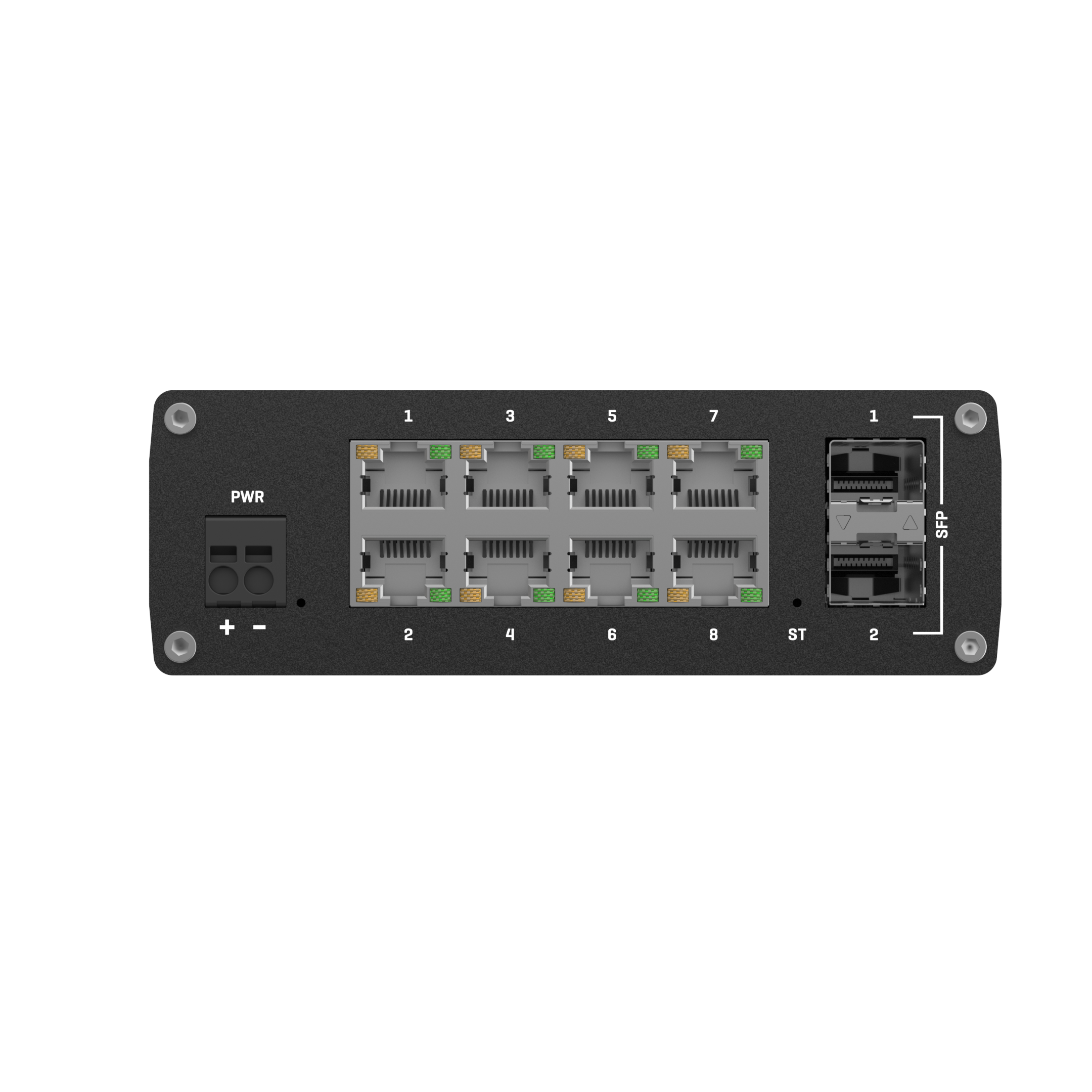

TSW212 is an L2 Teltonika Networks managed switch with additional L3 features, like DHCPv6 client support and static IPv6 routing for greater network management. This switch supports multiple industrial protocols, including EtherNet/IP, PROFINET, and MRP, and has 8 Gigabit Ethernet ports and 2 SFP ports to ensure robust long-range fibre optic communication. Encased in rugged aluminum housing, the TSW212 excels in withstanding extreme temperatures and resisting severe vibrations – all with effortless installation thanks to an integrated DIN rail mount.

• Article about the Profinet certification of the Teltonika switches TSW212 and TSW202: https://blog.telto-store.eu/teltonikas-profinet-zertifizierungen-der-switche-tsw202-und-tsw212/



#2: Content of delivery

• TSW212
• QSG (Quick Start Guide)
• Packaging box



#3: Features

ETHERNET

• Fibre

  2 x SFP ports

• IEEE 802.3 series standards

  IEEE 802.1p, IEEE 802.1Q, 802.3az

• LAN

  Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover

SERVICES

• EtherNet/IP

  Yes

• Profinet (class B)

  Yes

• SNMP V2, V3

  Yes

• LLDP

  Yes

NETWORK

• MRP

  MRP client role, MRP manager role

• L2 features

  Loop protection, Forwarding table, VLAN, STP/RSTP

• DHCP

  DHCP server, DHCP client

• Port Settings

  Enable/disable, link speed control, port isolation, EEE (802.3az) management, Port Mirroring

• L3 Features

  Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address

QOS

• QOS

  Port priority, DSCP priority, 802.1p priority, TOS

• Scheduling method

  SP/WFQ/WRR

• Bandwidth control

  Rate limiting, storm control

SYSTEM CHARACTERISTICS

• RAM

  128MB, DDR3

• FLASH storage

  16 MB serial flash

FIRMWARE / CONFIGURATION

• WEB UI

  Update FW from file, check FW on server, configuration profiles, configuration backup

• FOTA

  Update FW

• RMS

  Update FW/configuration for multiple devices at once

• Keep settings

  Update FW without losing current configuration

FIRMWARE CUSTOMISATION

• Operating system

  TSWOS (OpenWrt based Linux OS)

• Supported languages

  Busybox shell, Lua, C, C++

• Development tools

  SDK package with build environment provided

DIAGNOSTICS

• Tools

  Cable diagnostic, ping, traceroute, nslookup

PERFORMANCE SPECIFICATIONS

• Bandwidth (Non-blocking)

  20 Gbps

• Packet buffer

  512 KB

• MAC address table size

  8K entries

• Jumbo frame support

  10000 bytes

POWER

• Connector

  2-pin industrial DC power socket

• Input voltage range

  7 – 57 VDC

• Power consumption

  Idle: < 2.5 W / Max: 6 W

PHYSICAL INTERFACES

• Ethernet

  8 x RJ45 ports, 10/100/1000 Mbps

• Fibre

  2 x SFP ports

• Status LEDs

  1 x Power LED, 1 x Aux LED, 16 x LAN status LEDs, 2 x SFP status LEDs

• Power

  1 x 2-pin industrial DC power socket

• Reset

  Software reset button

• Other


  1 x Grounding screw

PHYSICAL SPECIFICATION

• Casing material

  Anodized aluminum housing and panels

• Dimensions (W x H x D)

  132 x 44.2 x 122.2 mm

• Weight

  615 g

• Mounting options

  Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement

OPERATING ENVIRONMENT

• Operating temperature

  -40 °C to 75 °C

• Operating humidity

  10% to 90% non-condensing

• Ingress Protection Rating

  IP30

REGULATORY & TYPE APPROVALS

• Regulatory

  CE, CB, RCM, FCC, IC, EAC, UCRF

EMC EMISSIONS & IMMUNITY

• Standards

  EN 55032:2015+A1:2020; EN 55035:2017+A11:2020; EN IEC 61000-6-2:2019

• ESD

  EN 61000-4-2:2009

• EFT

  EN 61000-4-4:2012

• Radiated Immunity

  EN IEC 61000-4-3:2020

• Surge Immunity (AC Mains Power Port)

  EN 61000-4-5:2014+A1:2017

• CS

  EN 61000-4-6:2014

• DIP

  EN IEC 61000-4-11:2020

SAFETY

• Standards

  IEC 62368-1:2018



---
