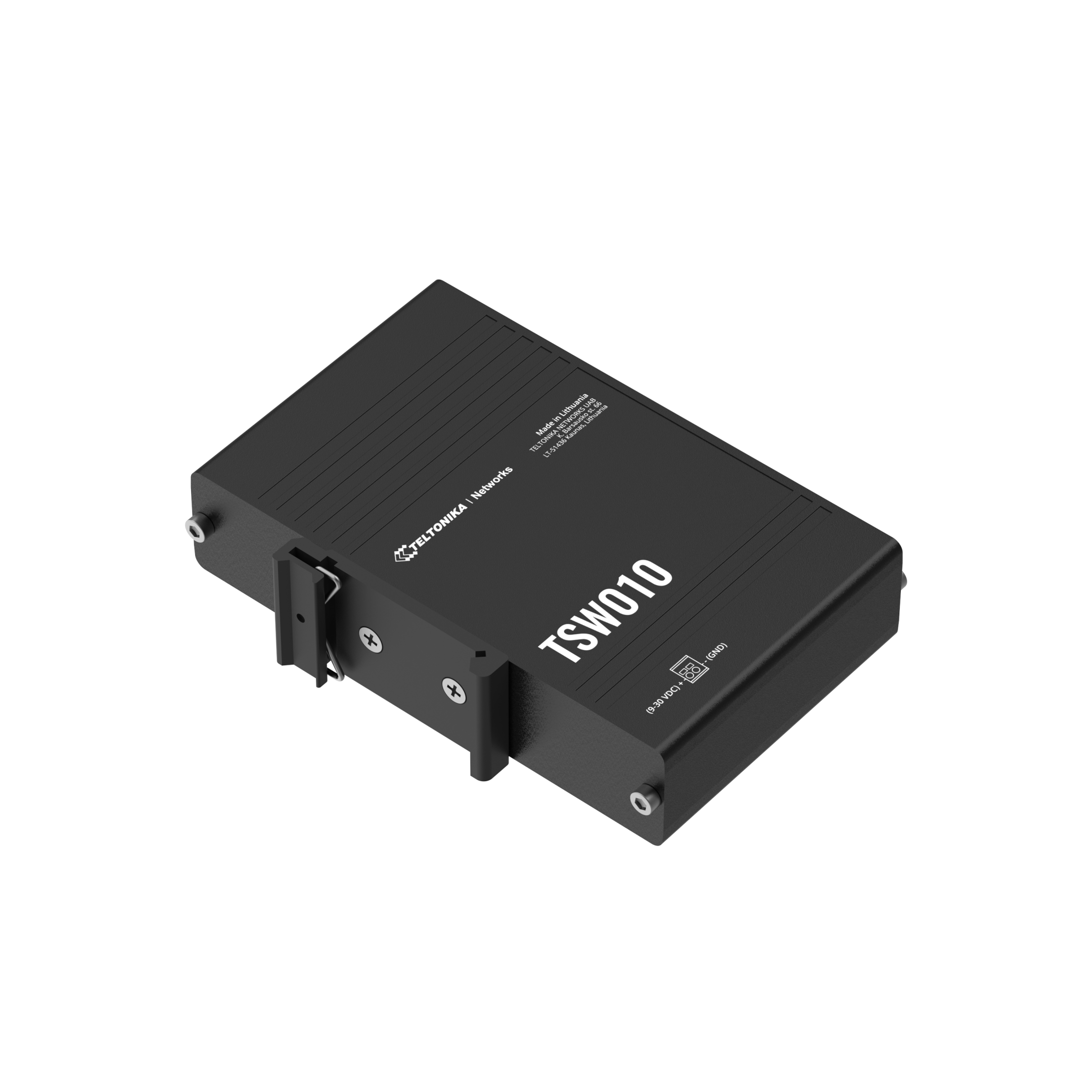

Teltonika TSW010
Product.Nr.: TSW010000000
Manufacturer: Teltonika
22,52 EUR
RRP 24,40 EUR
you save 7.7% (1,88 EUR)
incl. 19 % VAT
-
Sofort versandfähig
- weight 0,21 kg
product description
#1: TSW010
DIN RAIL SWITCHTeltonikas TSW010 offers the most affordable way to extend network connectivity to multiple Ethernet devices. Five 10/100 Mbps Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required.
#2: Content of delivery
- TSW010
- QSG (Quick Start Guide)
- Packaging box
#3: Features
ETHERNET
-
LAN
5 x ETH port, 10/100 Mbps, supports auto MDI/MDIX crossover
-
IEEE 802.3 series standards
802.3i, 802.3u, 802.3x, 802.3az
PERFORMANCE SPECIFICATIONS
-
Bandwidth (Non-blocking)
1 Gbps
-
MAC address table size
2K entries
-
Jumbo frame support
2048 bytes
POWER
-
Connector
2-pin industrial DC power socket
-
Input voltage range
9 – 30 VDC
-
PoE (passive)
Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
-
Power consumption
Idle: 0.3 W / Max: 0.9 W
PHYSICAL INTERFACES
-
Ethernet
5 x RJ45 ports, 10/100 Mbps
-
Status LEDs
1 x Power LED, 10 x LAN status LEDs
-
Power
1 x 2-pin industrial DC power socket
-
Other
1 x Grounding screw
PHYSICAL SPECIFICATION
-
Casing material
Aluminum housing
-
Dimensions (W x H x D)
113.1 x 27.4 x 80.5 mm
-
Weight
146.5 g
-
Mounting options
DIN rail or wall mounting (additional kit needed), flat surface placement
OPERATING ENVIRONMENT
-
Operating temperature
-40 °C to 75 °C
-
Operating humidity
10% to 90% non-condensing
-
Ingress Protection Rating
IP30
REGULATORY & TYPE APPROVALS
-
Regulatory
CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM
SAFETY
-
Standards
EN IEC 62368-1:2020+A11:2020
