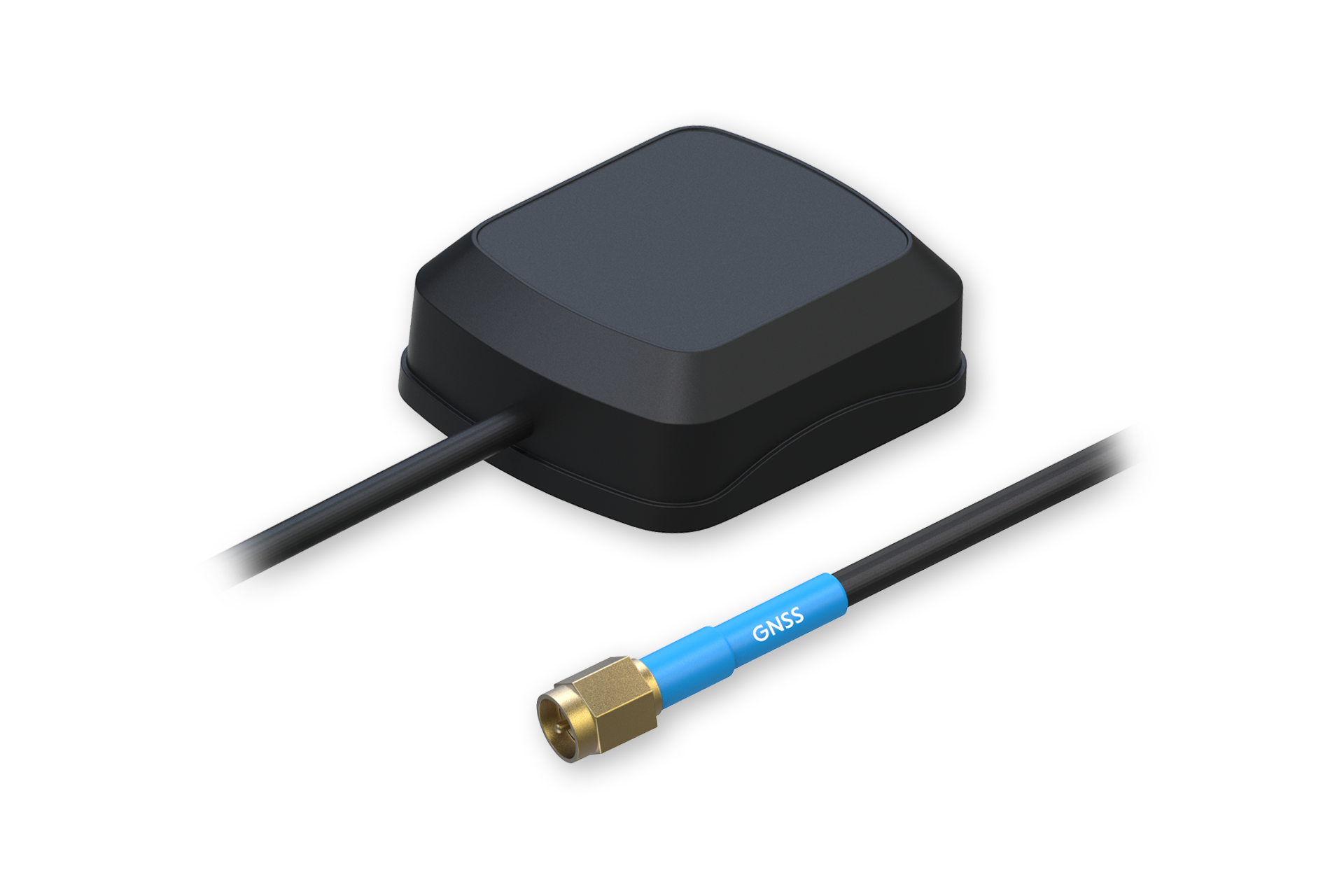

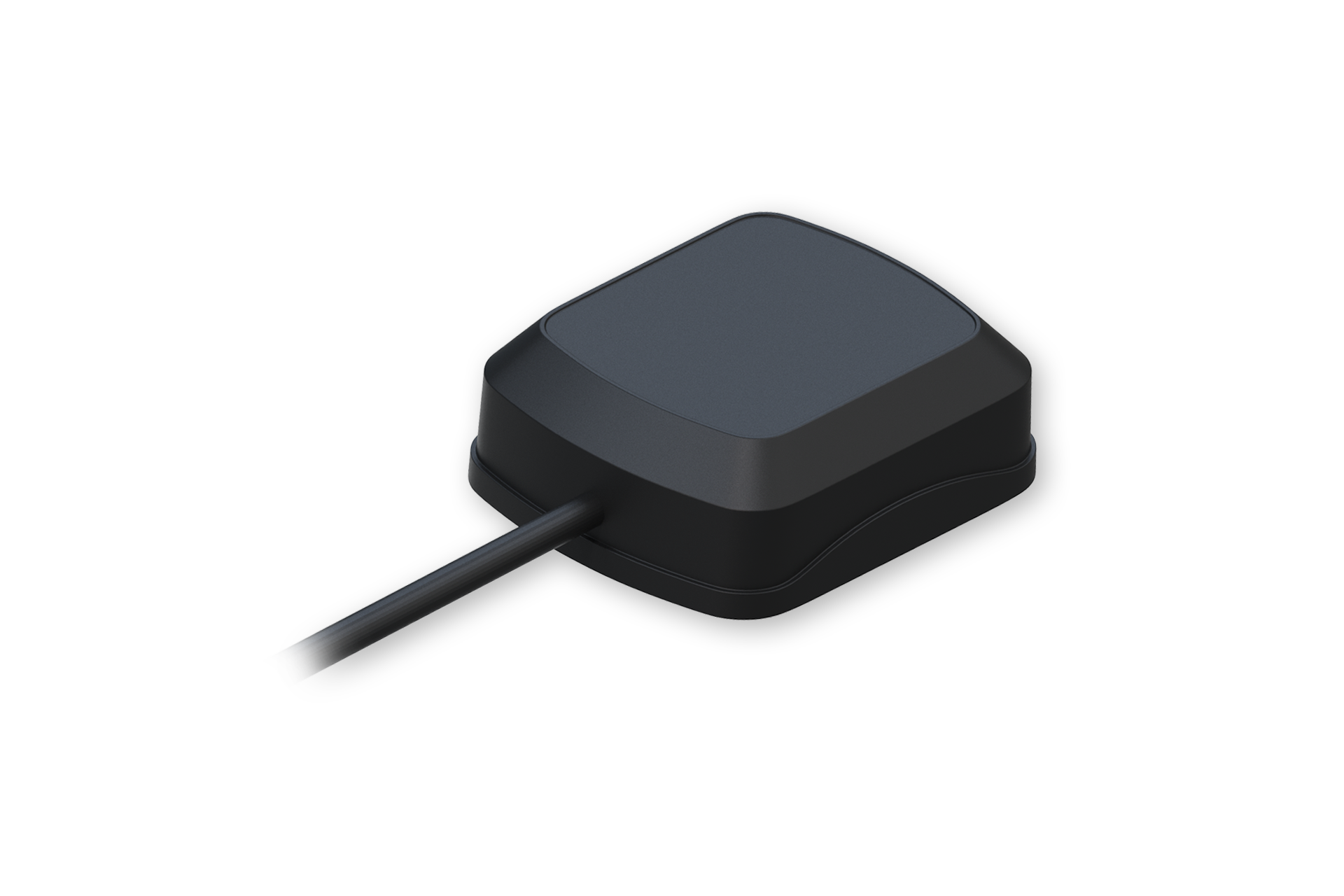

Teltonika PR1KSG30 - GNSS ADHESIVE SMA ANTENNA
Product.Nr.: PR1KSG30
Manufacturer: Teltonika
7,66 EUR
incl. 19 % VAT
-
- delivery time sofort lieferbar
- weight 0,06 kg
#1: PR1KSG30
GNSS ADHESIVE SMA ANTENNA
#2: Content of delivery
- 1x PR1KSG30
#3: Features
Frequency range
1575 ~ 1602 MHz
Polarization
RHCP
Gain
2.0 dBi
VSWR
1.5
Impedance
50 Ω
Axial ratio
3 dB
LNA gain
26 ± 2 dB
LNA noise figure
1.5 dB
Supply voltage
2.2 – 5.0 VDC
Current consumption
5 – 15 mA
LNA VSWR
2.0
Cable
RG174, 3000 mm
Connector type
SMA Male
Mounting method
Adhesive
