#1: TSW101

AUTOMOTIVE POE+ SWITCH

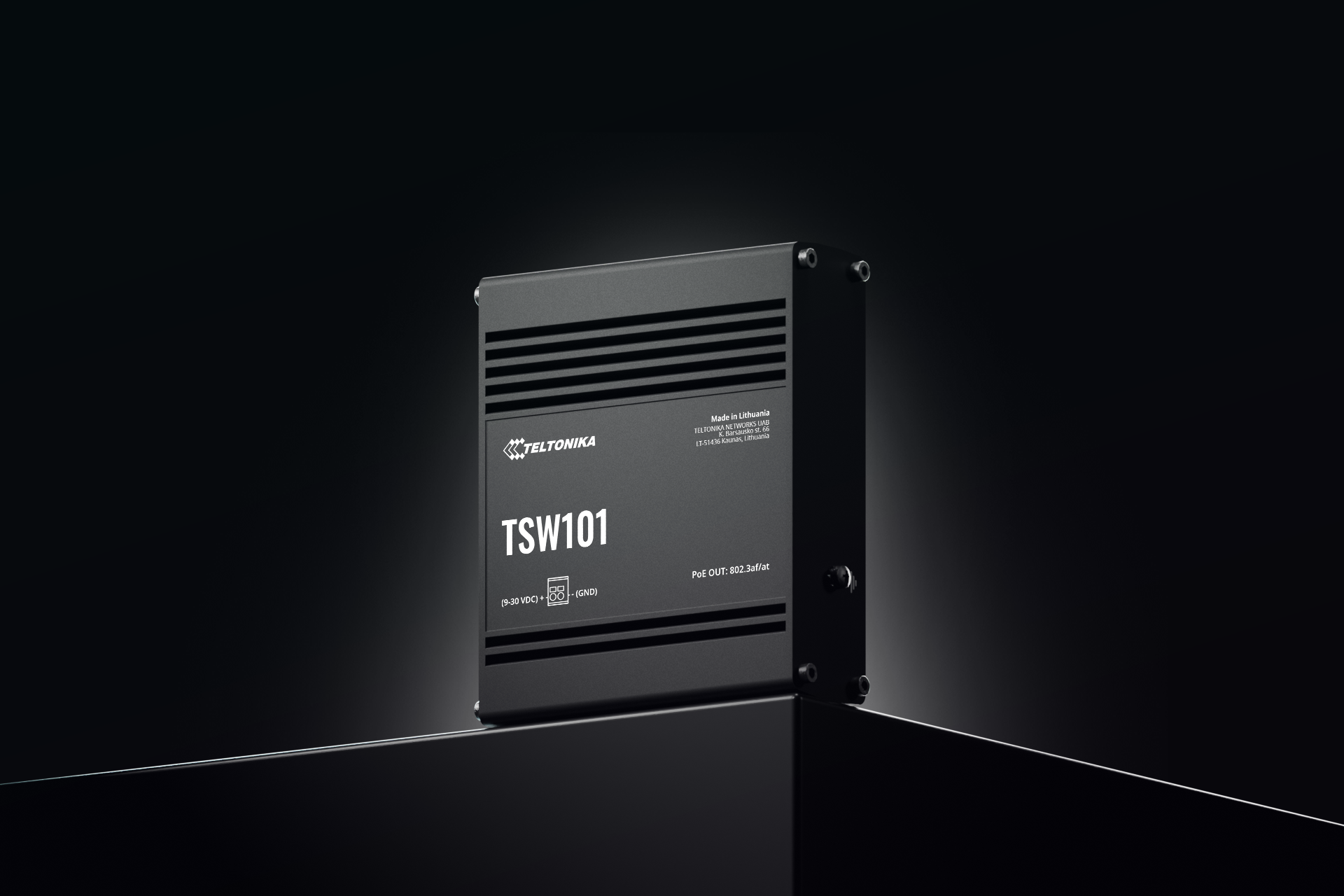

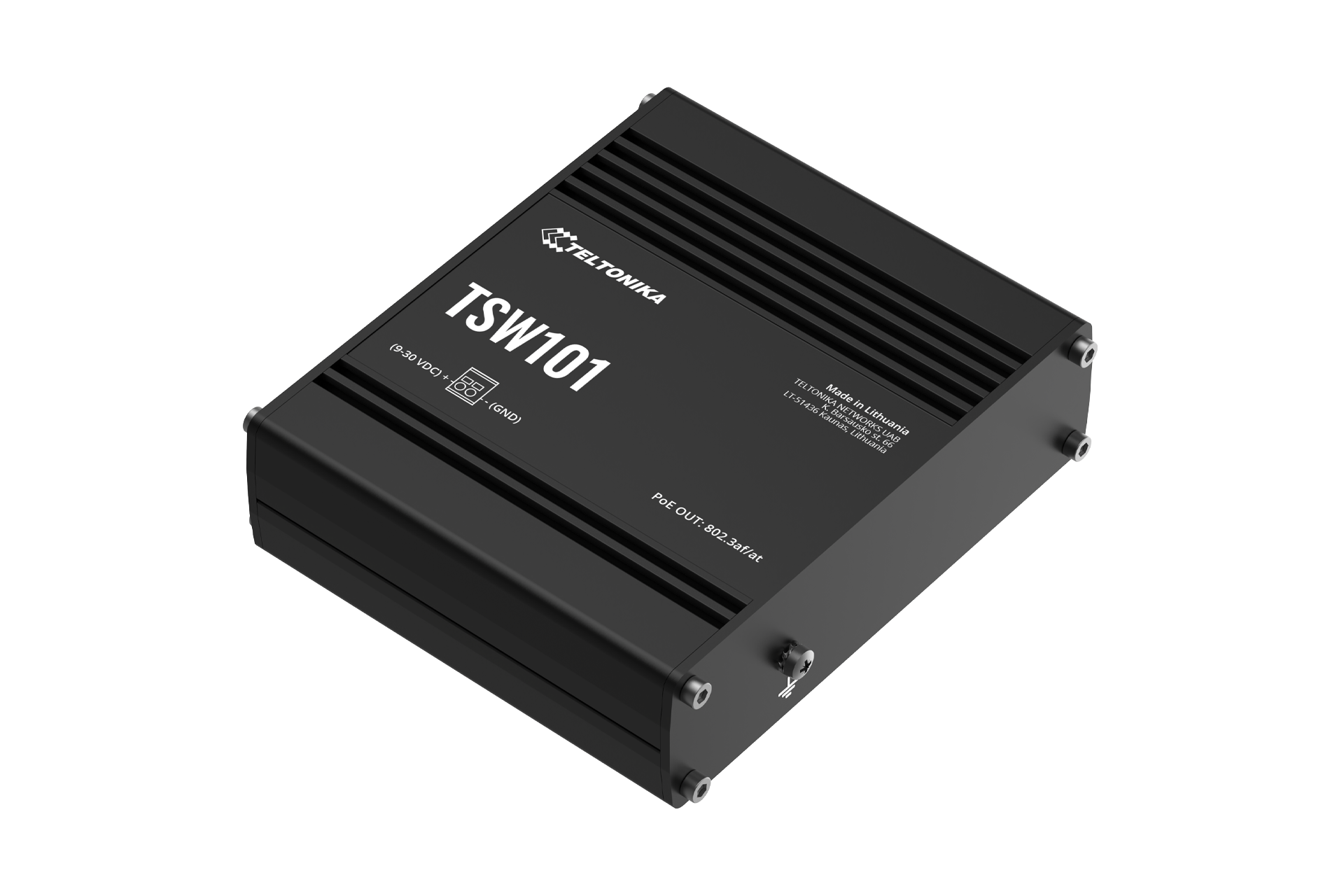

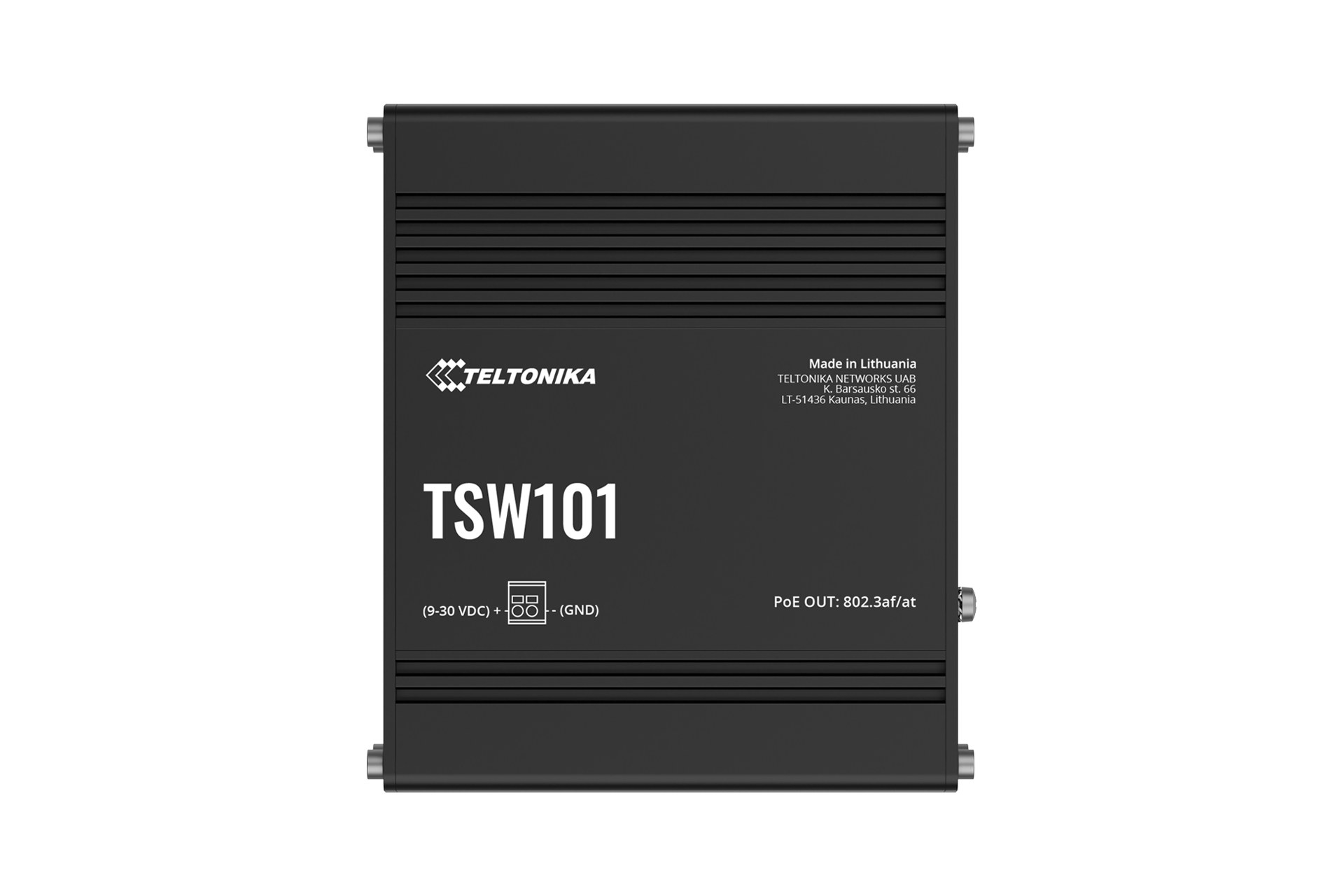

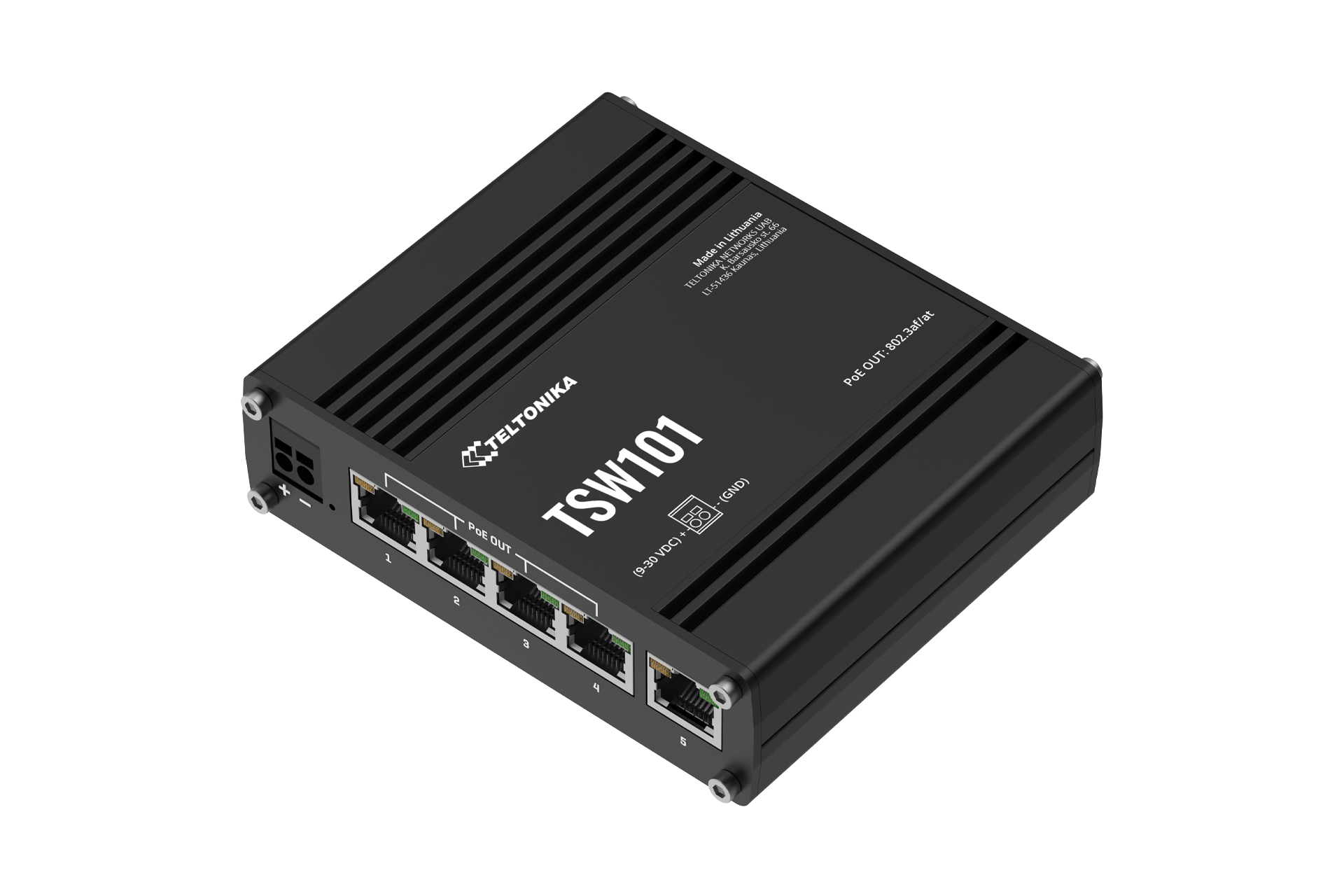

The TSW101 is a plug-and-play automotive switch dedicated to in-vehicle applications. Featuring five Gigabit Ethernet ports, including four with PoE+ support, the TSW101 can power your end devices while connecting them to the Internet. This automotive switch can be powered by 12 V or 24 V car battery, requiring no additional PSU.



#2: Im Lieferumfang enthalten

• TSW101
• QSG (Quick Start Guide)
• Packaging box



#3: Features

INDUSTRIAL PROTOCOLS
Profinet

Profinet Class A conformance (available with optional order code)

Ethernet
ETH

5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

IEEE 802.3 series standards

802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

POE OUT
PoE+ ports

Port 1 - 4

PoE standards

IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A

PoE Max Power per Port (at PSE)

30 W

Total PoE Power Budget (at PSE)

60 W

Maximum Ethernet cable length

100 m

Power
Connector

2-pin industrial DC power socket

Input voltage range

9 – 30 VDC

PoE-Out input voltage range

9 – 30 VDC

Power consumption

Idle: 0.64 W / Max: 2.31 W / PoE Max: 62.3 W

PSU

12 V or 24 V car battery-powered. No additional PSU is required.

Physical Interfaces
Ethernet

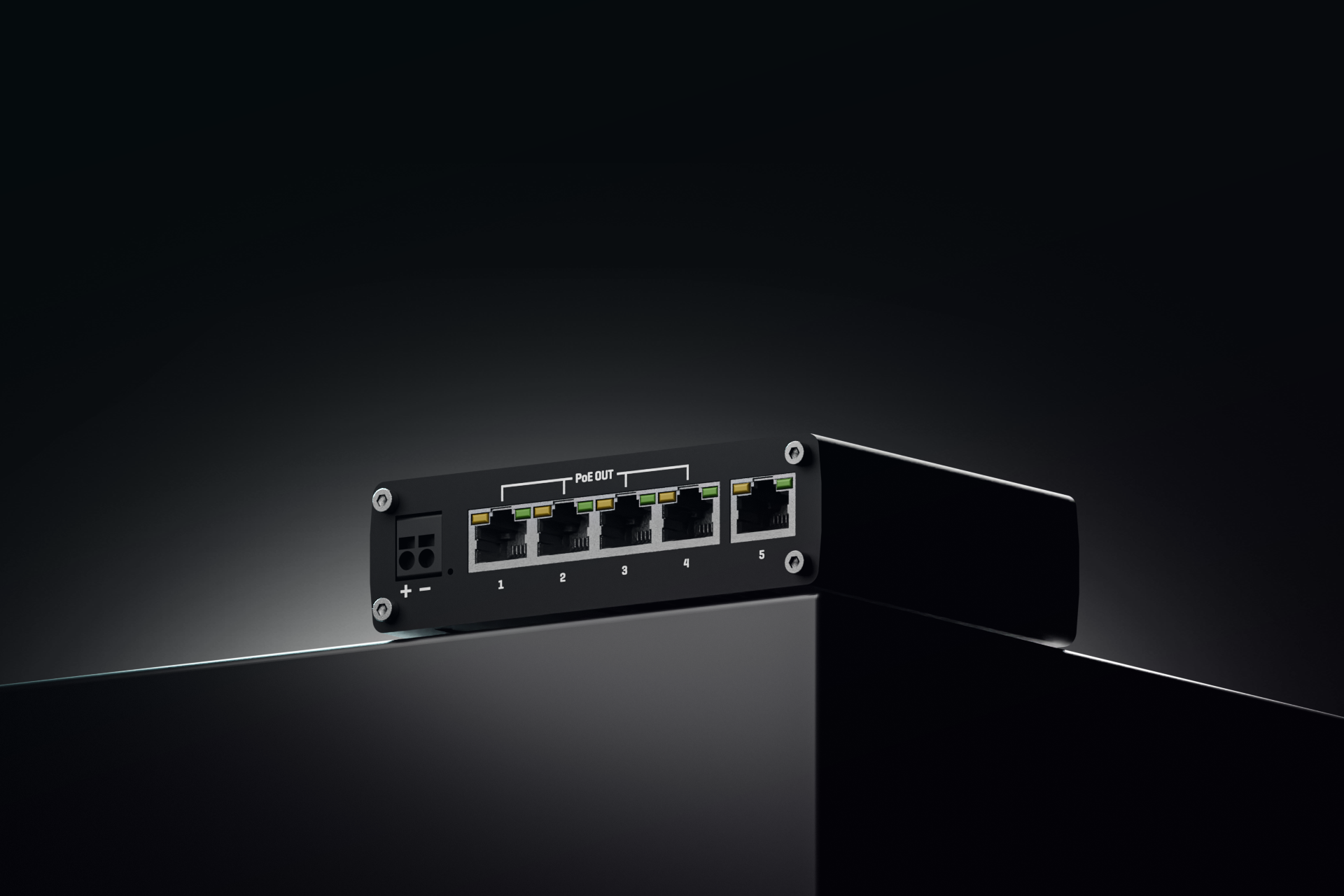

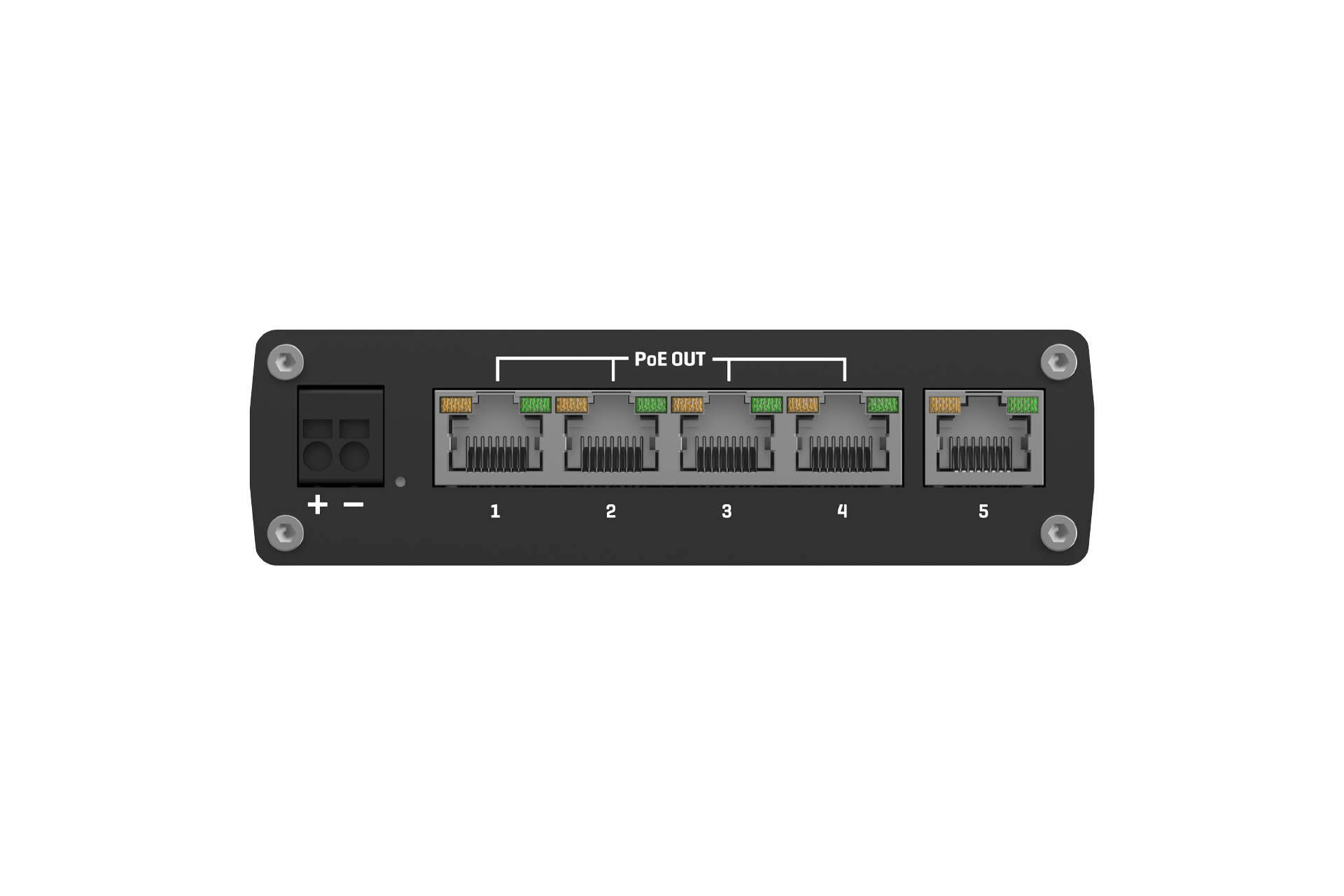

5 x RJ45 ports, 10/100/1000 Mbps

Status LEDs

1 x Power LED, 10 x ETH status LEDs

Power

1 x 2-pin industrial DC power socket

Other

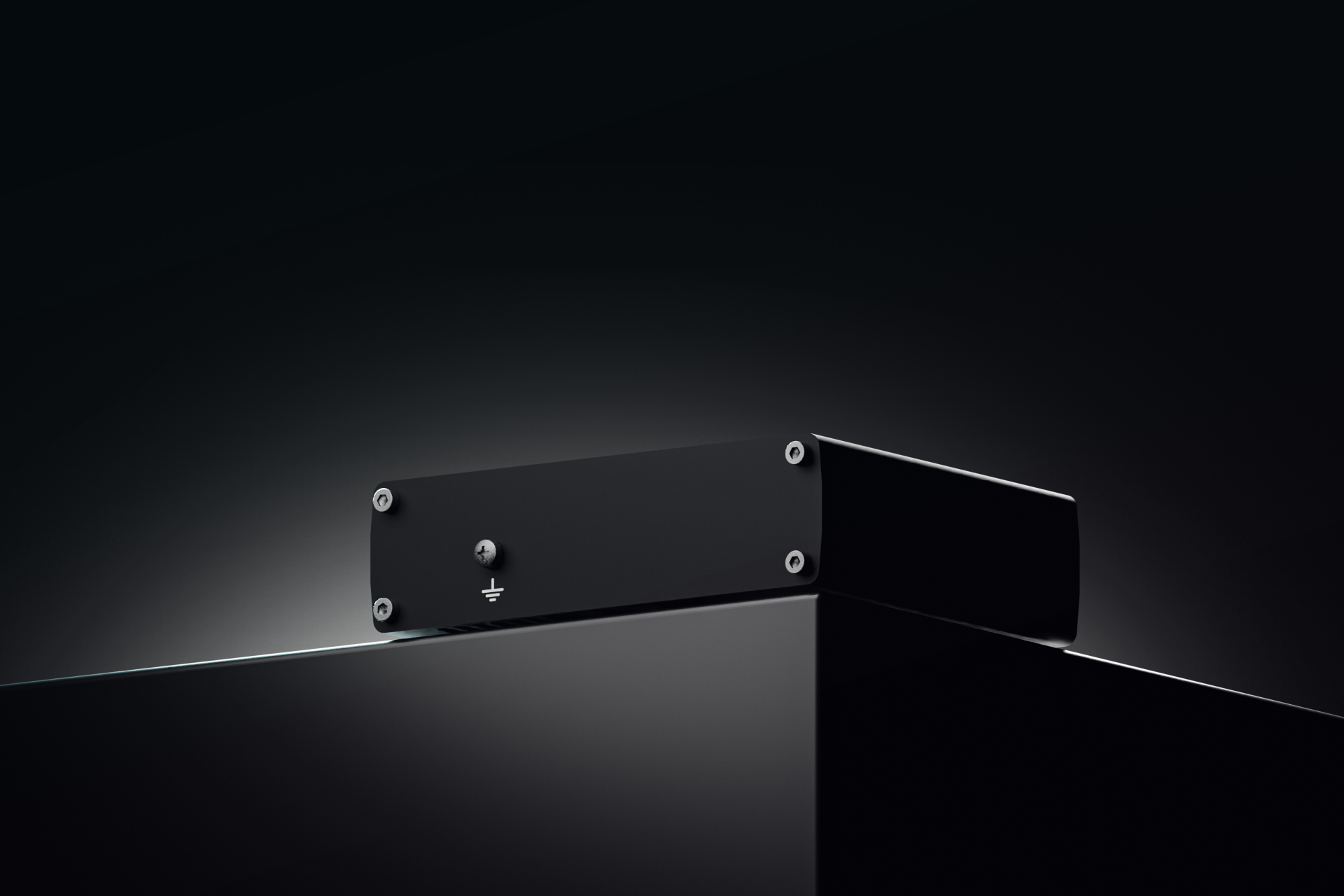

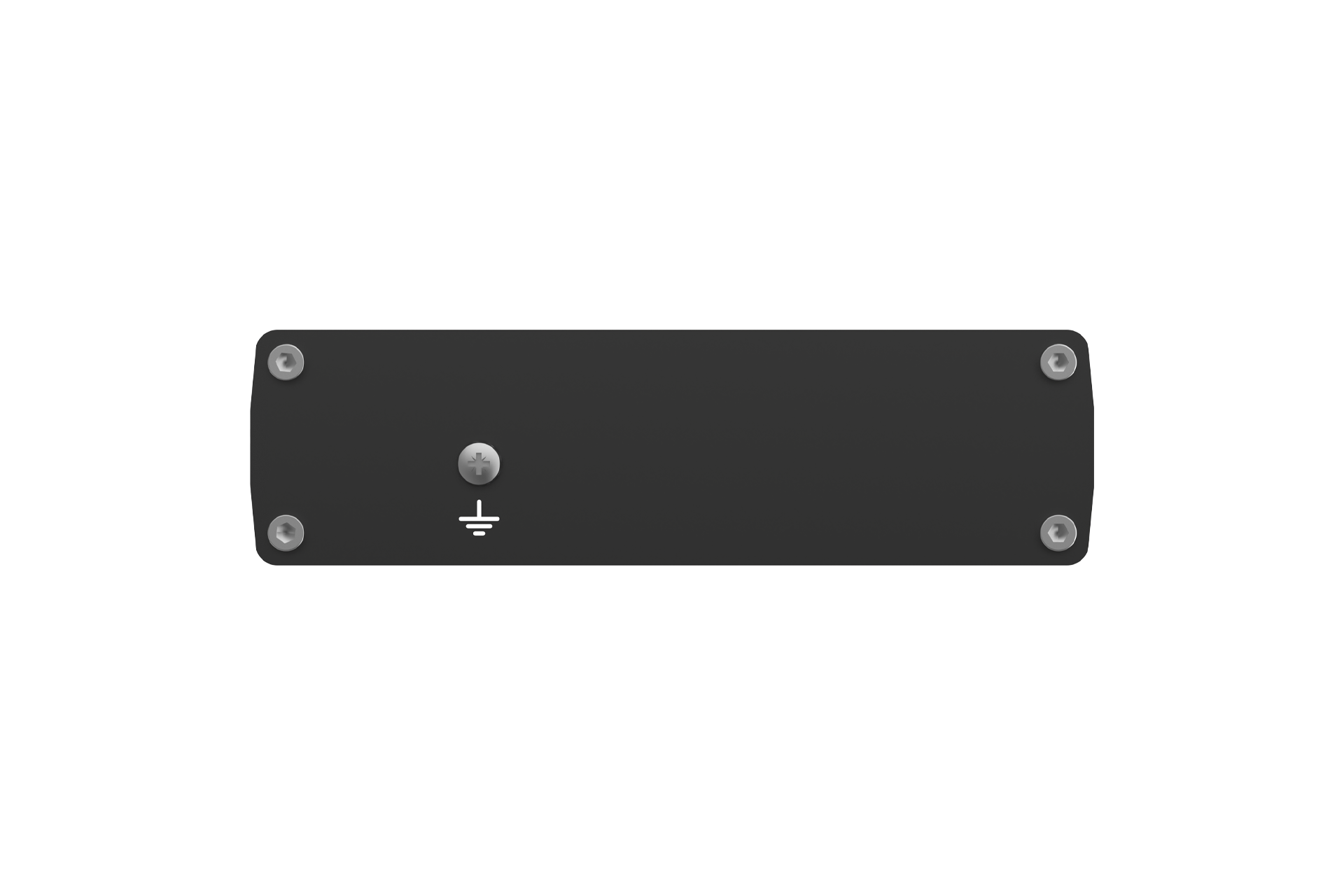

1 x Grounding screw

Physical Specification
Casing material

Aluminium housing

Dimensions (W x H x D)

115 x 32 x 95 mm

Weight

384 g

Mounting options

DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment
Operating temperature

-40 °C to 75 °C

Operating humidity

5% to 95% non-condensing

Ingress Protection Rating

IP30

Regulatory & Type Approvals
Regulatory

CE, REACH, RoHS, WEEE

TSW101 CE

TSW101 UKCA

TSW101 FCC

TSW101 IC

TSW101 CB

TSW101 RCM

E-Mark

EMC Emissions & Immunity
Standards

EN 55032:2015 + A11:2020 + A1:2020

EN 55035:2017 + A11:2020

ESD

EN 61000-4-2:2009

Radiated Immunity

EN IEC 61000-4-3:2020

EFT

EN 61000-4-4:2012

Surge immunity (AC Power Line)

EN 61000-4-5:2014 + A1:2017

CS

EN 61000-4-6:2014

Safety
Standards

CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017

RCM: AS/NZS 62368.1:2022

CB: IEC 62368-1:2018

Performance Specifications
Bandwidth (Non-blocking)

10 Gbps

Packer buffer

128 KB

MAC address table size

2K entries

Jumbo frame support

9216 bytes



---
