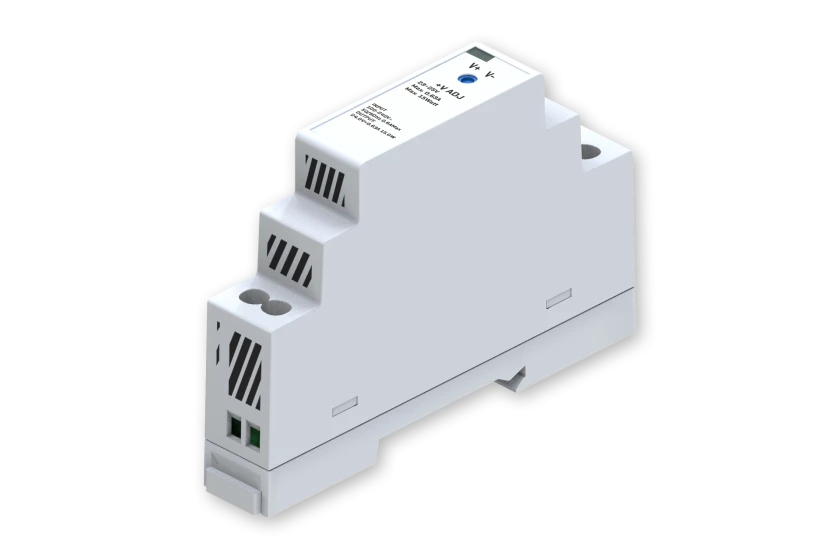

Teltonika PR321NP0 - DIN RAIL POWER SUPPLY, 15W
Art.Nr.: PR321NP0
Hersteller: Teltonika
11,60 EUR
incl. 19 % USt
-
Sofort versandfähig
- Gewicht 0,08 kg
Produktbeschreibung
#1: PR321NP0
DIN RAIL POWER SUPPLY, 15W
#2: Im Lieferumfang enthalten
- 1x PR321NP0
#3: Features
TECHNICAL DATA
-
GENERAL
-
Input voltage
90 – 264 VAC
-
Input frequency
50/60 Hz
-
Input current
0.5 A
-
Output voltage
24 VDC
-
Output current
0.63 A
-
Input voltage absolute maximum
85 – 264 VAC
-
Input frequency absolute maximum
47 – 63 Hz
-
Inrush currect
45 A
-
Output voltage absolute maximum
21.6 – 29 VDC
-
Short circuit protection
✓
-
HIPOT (dielectric withstand test) – Primary to Secondary
3 kVAC
-
Input connector
Screw terminal
-
Output connector
Screw terminal
-
Weight
78 g
-
Certification
Safety: EN 62368-1:2014+A11:2017, BS EN 62368-1:2014+A11:2017
EMC: EN 55032:2015+A11:2020+A1:2020, EN 55035:2017+A11:2020, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, BS EN 55032:2015+A11:2020, BS EN 55035:2017+A11:2020, BS EN IEC 61000-3-2:2019+A1:2021, BS EN 61000-3-3:2013+A1:2019
Downloads
din-rail-power-supply-pr321np0.pdf (0.34 MB)
